Mounting: Rear double doors with variable wheelbase (58–62 cm) to fit different door shapes.
Compact Brackets: Upper wall installation brackets are only 34 mm wide for a discreet fit.
Bike Capacity:
Standard: 2 bikes
Max: 2 bikes (not expandable)
Max Load: 35 kg
E-Bike Compatible: No
Vehicle Compatibility:
Fiat Ducato I Series / Citroën C25 / Peugeot J5 (1981–1994, H1/H2)
Fiat Ducato II Series / Peugeot Boxer I / Citroën Jumper I (1994–1999, H2)
Ford Transit MK3–MK7 (1987–2014, H1/H2/H3, with double rear doors)
Ford Transit MK8 (from 2014, H3, with double rear doors)
Supplied With:
2 x Rail Quick Pro (bike rails)
Bike-Block Pro 1 & Pro 2 (locking systems)
Security Strip
Brackets
Technical Specs:
Colour: Aluminium
Position: Rear double door
Vertical Wheelbase: 90–118 cm (adjustable)
Horizontal Wheelbase: 60 cm

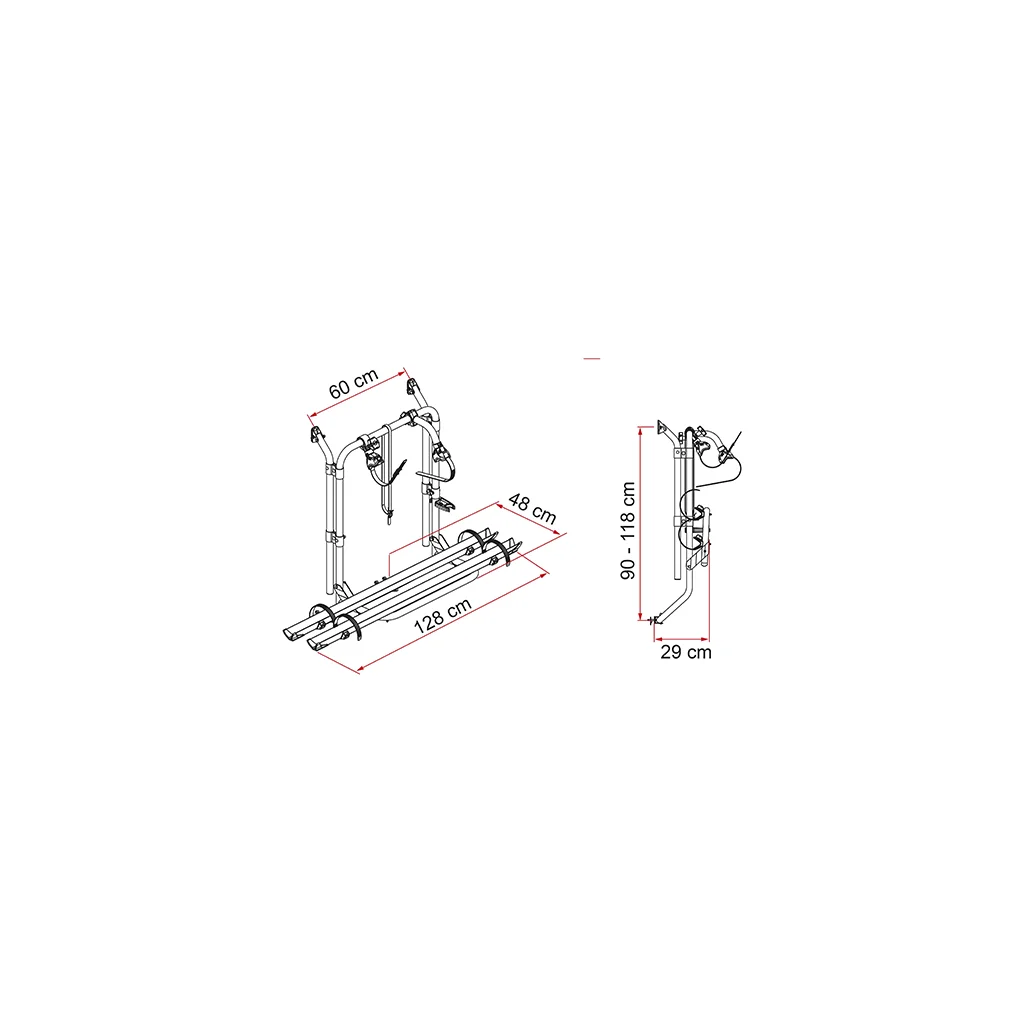

Dimensions: 128 x 48 x 90 cm (standard open position)
Weight: 6.9 kg
Distance Between Rails: 15 cm
Licence Plate Carrier: Supplied separately
