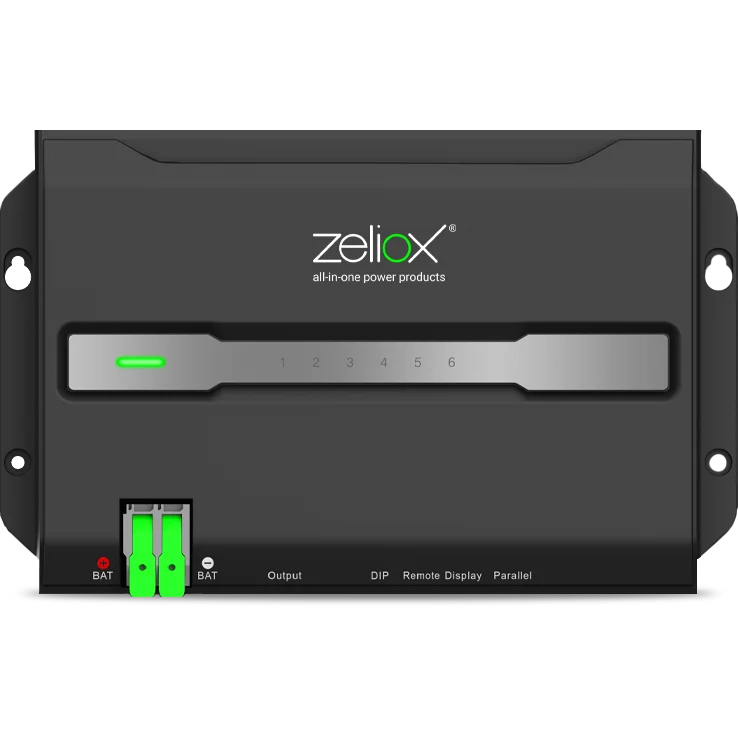

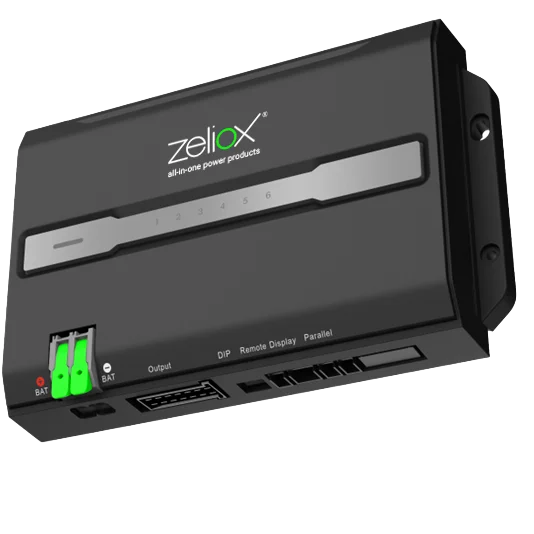

Eberspächer ZCM6 Zeliox Control Module
EAN: 9102-0001
The Zeliox ZCM6 is a versatile, programmable DC power distribution module designed for professional vehicle converters, fleet managers, and OEMs. It offers six independently configurable output channels, enabling precise control over a range of onboard electrical systems such as lighting, HVAC, refrigeration, and auxiliary equipment. With support for both 12V and 24V systems, the ZCM6 is ideal for commercial vans, emergency vehicles, and off-grid applications.
- 6 Programmable Output Channels: Five channels rated at 15A and one at 25A, with the ability to parallel channels for higher loads
- Adjustable Settings Per Channel: Configure maximum current, time-delayed shutoff, permanent power, and dimming functions
- Wireless Control Options: Operate via RF-controlled buttons or the dedicated Zeliox ZCM6 mobile app (available for Android and iOS)
- Advanced Communication Interfaces: Supports CAN, RS485, RF, and Bluetooth for seamless integration with vehicle systems
- Battery Protection: Includes overvoltage and undervoltage safeguards to prevent deep discharge
- Expandable System: Combine up to four ZCM6 units to manage up to 24 channels
- Plug & Play Installation: Simplifies setup with secure connectors and eliminates the need for dashboard modifications
- Digital Fuse Management: Removes the need for physical fuses, reducing maintenance and downtime
- Real-Time Monitoring: Built-in current sampling for each channel allows for intelligent power management and diagnostics
- Input: 12/24V from vehicle battery
- Output: 6 channels fully programmable
- Control: wireless remote buttons
- App: for Android and IOS
There are currently no documents available for this product.
