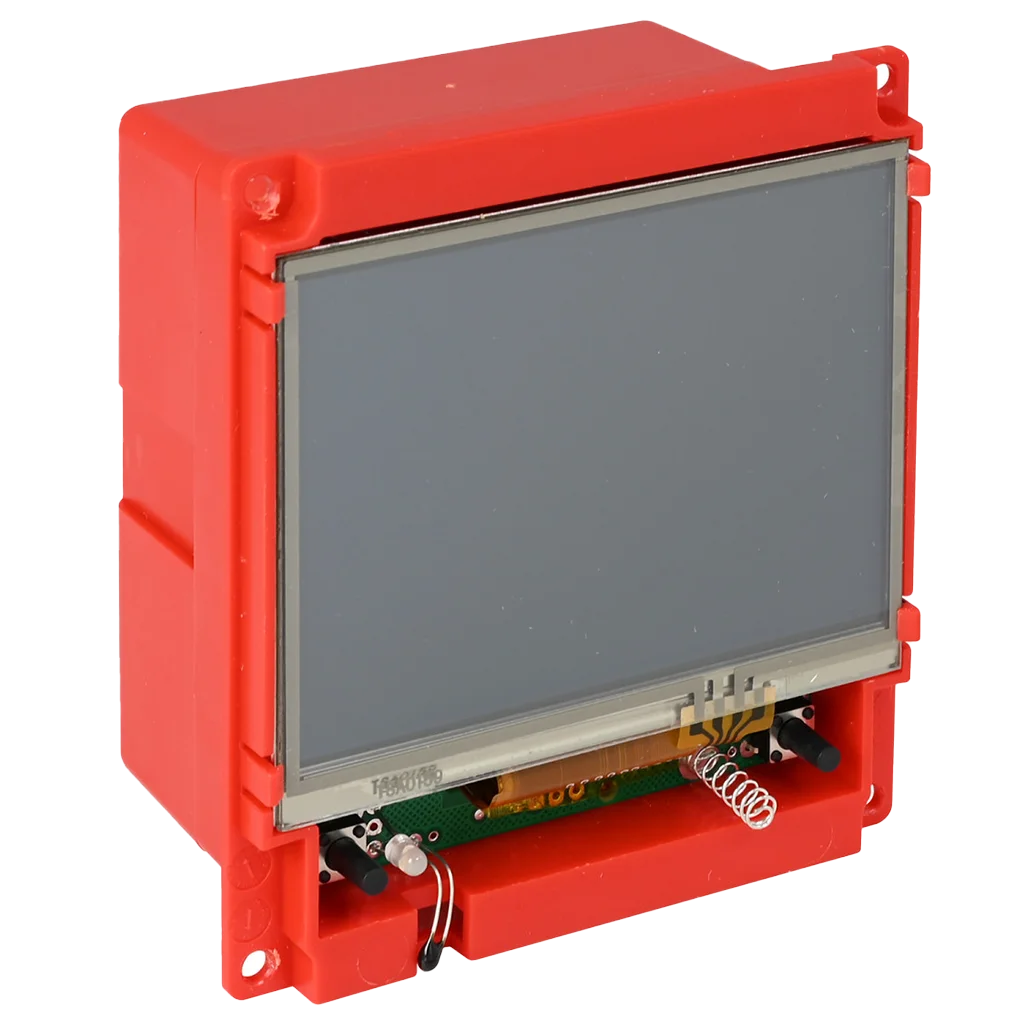

Alde Compact 3030/3030 Plus Capacitive Touchscreen Control Panel
EAN:
The Control Panel for Alde Compact 3030/3030 Plus is equipped with a 3.5″ capacitive touchscreen and a user-friendly interface for easy operation. It allows control of a heating system with two temperature zones, enabling precise and efficient climate control in your motorhome or caravan. The panel is compatible with various Truma AC models (Aventa Comfort, Eco, Compact, Compact Plus; Saphir Comfort RC, Saphir Compact) to provide fully automatic climate control (ACC), including control over the AC and its lighting.
The control panel is divided into two main menus:
1. Status Screen (Main Menu): Displays the temperature for 1 or 2 zones, energy selection, hot water status, and connected systems.
2. Settings Menu: Here, you can set and activate additional accessories and functions.
Please Note: The front fascia is sold separately. You can choose between the silver fascia (3010-616) or black fascia (3010-618) to complement your setup.
- 3.5" capacitive touchscreen for intuitive control.
- User-friendly interface with simple navigation.
- Control up to two temperature zones.
- Connects to Truma AC models for fully automatic climate control (ACC).
- Status Screen displays temperature, energy selection, hot water, and more.
- Settings Menu to set and activate additional functions.
- Compatible with Alde Compact 3030/3030 Plus systems.
- Works with Truma Aventa (Comfort, Eco, Compact, Compact Plus) and Truma Saphir Comfort RC and Saphir Compact (from serial no. 23091001).
- External Dimensions (with front fascia): 97x 86 mm
- Hole Size (for mounting): 84x73 mm
There are currently no documents available for this product.
